Generac liquid-cooled generators

This article provides an overview of current liquid-cooled generators offered by Generac. When sizing for a generator, reach out to a local Authorized Service Dealer to determine which generator best fits your needs.

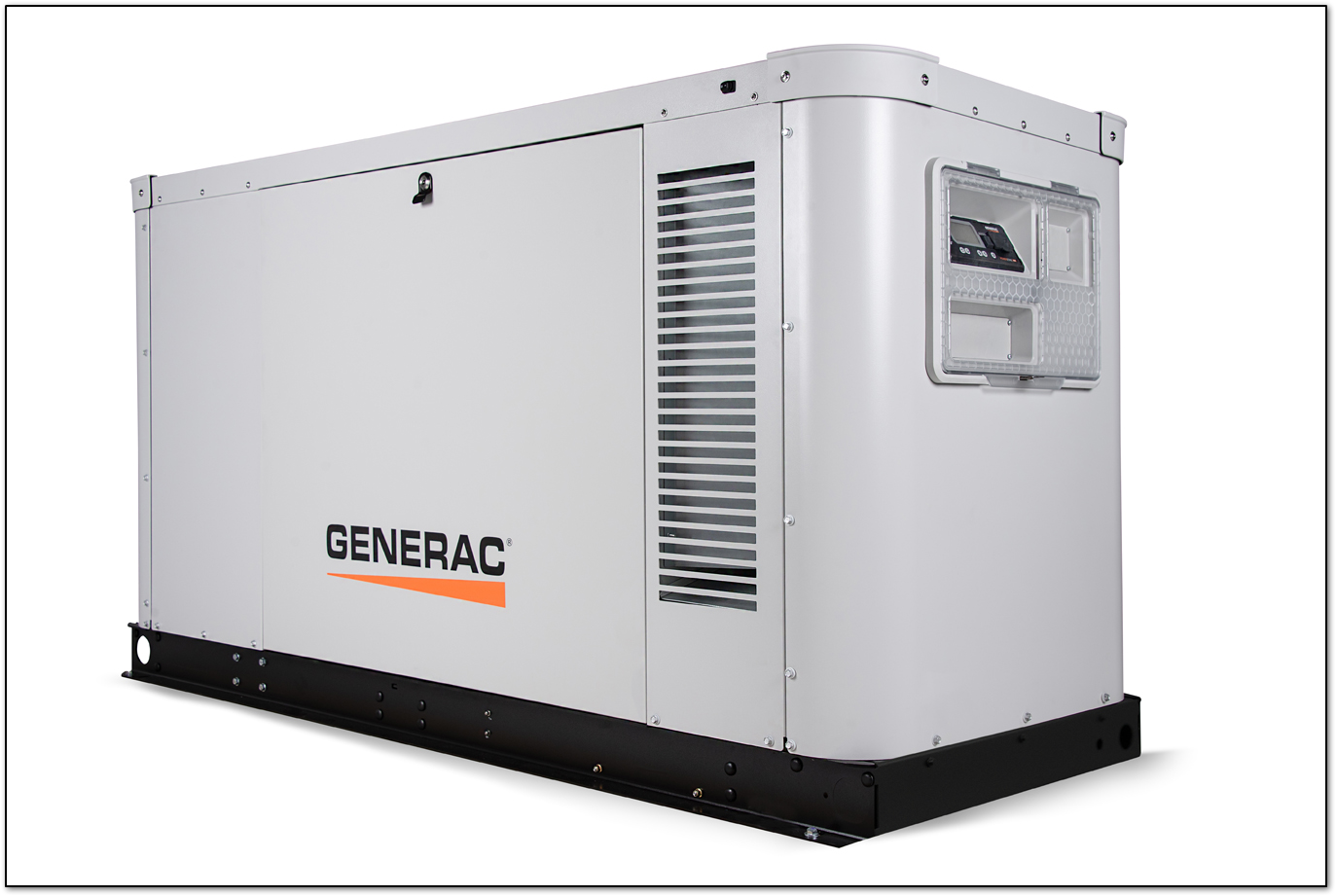

XG Series

Generac’s new XG Series liquid‑cooled standby generators are designed for upscale residential and light commercial applications, delivering 32 kW, 40 kW, and 48 kW models with advanced power quality, flexibility, and connectivity.

  • Power Range: 32 kW, 40 kW, and 48 kW (running watts), all powered by Generac’s proprietary 4.5 L liquid‑cooled engine operating at an efficient 1800 RPM.
  • Fuel Flexibility: Controller‑selectable to run on natural gas or LP, simplifying installation and field conversion.
  • Voltage Options: Available in single‑phase (120/240 V) or configurable 3‑phase (120/208, 240/120, 480/277 V) models via removable Voltage Configuration Cartridge (VCC).
  • Power Quality: TruePower™ technology with solid‑state, frequency‑compensated voltage regulation for <5 % THD and ±1 % voltage stability, suitable for sensitive electronics.
  • Quiet‑Test™ Self‑Test Mode: Programmable weekly, bi‑weekly, or monthly low‑speed exercise cycle for quiet, fuel‑efficient monitoring.
  • Mobile Link™ Cellular Connectivity: Standard on all XG units for remote status monitoring via smartphone or PC, with dealer Fleet support.
  • Enclosure & Durability: Sound‑attenuated aluminum housing, electro‑galvanized steel frame, stainless exhaust, rated for 145 mph winds; single‑side maintenance access.
  • Ease of Maintenance: Padlockable UV‑protected control panel, built‑in battery charger, iso‑governor, closed coolant recovery system.
  • Engine & Testing: Generac‑designed 4.5 L inline 4‑cylinder engine with hydraulic lifters; prototype tested to NEMA/CSA standards; high‑surge motor‑starting capability.
  • Warranty & Support: 5‑year/2,000‑hour limited warranty (US)
ModelPower (kW)Phase/VoltageEmissions
XG03245ANAX321‑phase (120/240 V)Non‑CA/MA
XG03245CNAX323‑phase configurableNon‑CA/MA
XG04045ANAC401‑phase (120/240 V) w/ catalystCA/MA compliant
XG04045CNAX403‑phase configurableNon‑CA/MA
XG04845ANAC481‑phase (120/240 V) w/ catalystCA/MA compliant
XG04845CNAC483‑phase configurable w/ catalystCA/MA compliant

Protector Series


  • Available in 25kW, 30kW, 36kW, 45kW, and 60kW sizes
  • Evolution Control Board
  • Auxiliary Shutdown Switches Included
  • 25kW/30kW use the 1.5L Engine
  • 36kW/45kW/60kW use the 2.4L Engine
  • 3600RPM
  • Field convertible from NG to LP (Except 60kW – must specify fuel type)
  • 25kW & 30kW – SwRI tested for 18” clearance
  • Group 26, 12V, 525 CCA Minimum (Not Included)
  • 5-Year Limited Warranty

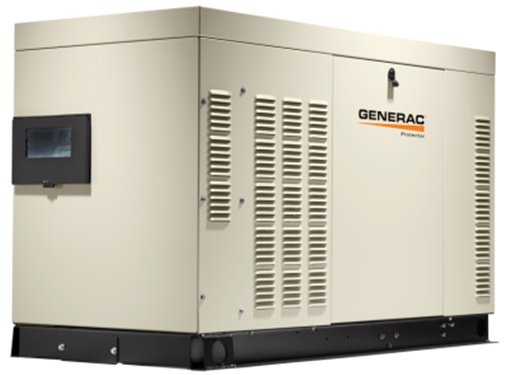

Protector QS Series


  • Available in 22kW, 27kW, 32kW, and 38kW sizes
  • Evolution Control Board
  • Auxiliary Shutdown Switches Included
  • All use Generac 2.4L Engine
  • Quiet Source – All units 1800 RPM
  • All field convertible from NG to LP
  • All SwRI Certified for 18” clearance
  • Group 26, 12V, 525 CCA Minimum (Not Included)
  • 5-Year Limited Warranty


4.5L Protector Series


  • Available in 48kW, 60kW, and 80kW sizes
  • Evolution Control Board
  • Auxiliary Shutdown Switches Included
  • Generac 4.5L Engine (Developed in-house)
  • 1800 RPM
  • All field convertible from NG to LP (No mechanical fuel conversion required)
  • All SwRI Certified for 18” clearance
  • Group 27F, 12V, 725 CCA Minimum – Not Included
  • 5-Year Limited Warranty

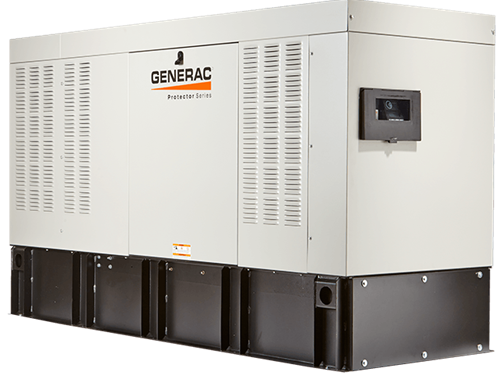

Protector Series Diesel


  • Available in 15kW, 20kW, 30kW, 48kW, and 50kW sizes
  • Evolution Control Board
  • Auxiliary Shutdown Switches Included
  • 15kW & 20kW Mitsubishi 2.5L
  • 30kW Perkins 2.2L
  • 48kW & 50kW Mitsubishi 3.3L
  • 1800 RPM
  • Runs on diesel fuel
  • Group 27F, 12V, 700CCA Minimum – Not Included
  • 5-Year Limited Warranty

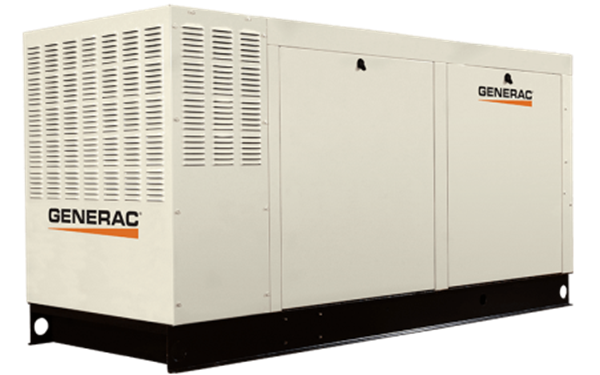

QT Series (Discontinued)


  • Nexus Control Board
  • 80kW uses the 5.4L Generac Engine
  • 70, 100, 130, & 150kW use the 6.8L Generac Engine
  • Engine RPM varies by size (see spec sheet)
  • Must specify fuel type before purchase (NG or LP)
  • 70, 80 & 150kW Group 24F, 525CCA Minimum (Battery Included)
  • 100kW & 130kW Group 27F, 700CCA Minimum (Battery Included)
  • 2-Year Limited Warranty

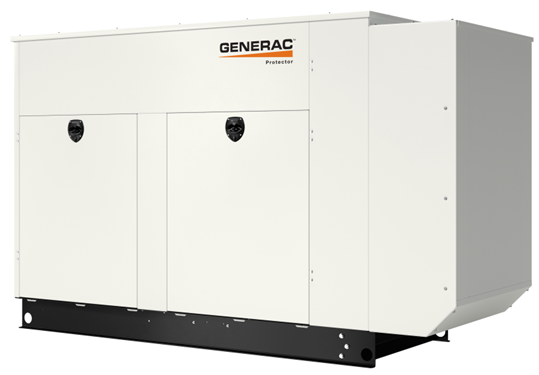

2021 Protector Series


  • Available in 100kW, 130kW and 150kW sizes
  • Evolution Control Board
  • Auxiliary Shutdown Switches Included
  • Generac 9.0L Engine
  • (Developed in-house)
  • 1800 RPM
  • Must specify fuel type (NG or LP)
  • Group 31F, 12V, 925CCA Minimum
  • (Battery Included)
  • 5-Year Limited Warranty
