Are There Limitations to How High I Can Place the Pump above the Water Source?​

Yes, the maximum vertical suction lift for most units is 25-26 ft. in standard conditions.

  • Apr 5, 2023
  • Knowledge

Title
Are There Limitations to How High I Can Place the Pump above the Water Source?​
URL Name
Are-There-Limitations-to-How-High-I-Can-Place-the-Pump-above-the-Water-Source

Public Answer

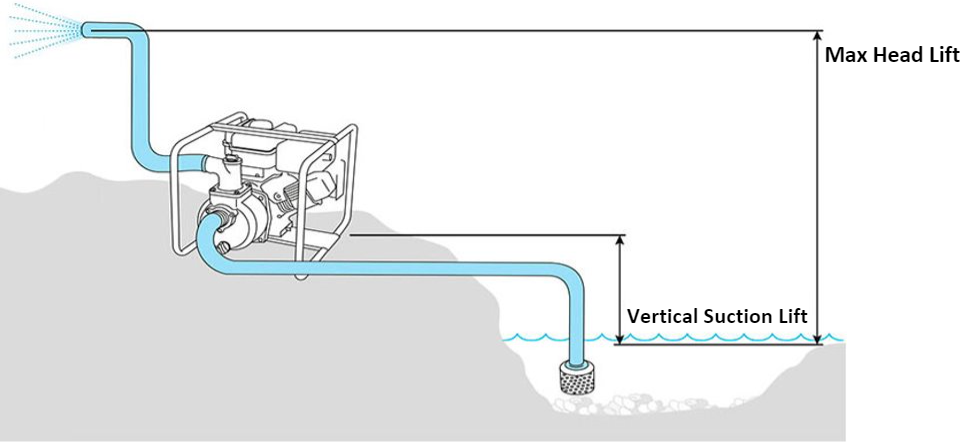

The performance of a pump is influenced by various factors such as the length and diameter of suction and discharge hoses, the total head, and the Vertical Suction Lift. The vertical suction lift refers to the verticle distance between the water source and the pump's inlet. Typically, centrifugal water pumps have a maximum vertical suction lift of 26 feet, and exceeding this limit can affect the pump's efficiency and output and risk damage to the unit. Therefore, it's essential to ensure that the pump is appropriately sized and located to optimize its performance.
