R3D Dial Removal

Some underground tanks have a valve in the way of the slot on the R3D dial, so you will need to remove your dial, attach your monitor's sensor to the dial, and then add the dial back to the tank gauge. Before removing your dial, make sure to note the way the dial was installed along with the tank level.

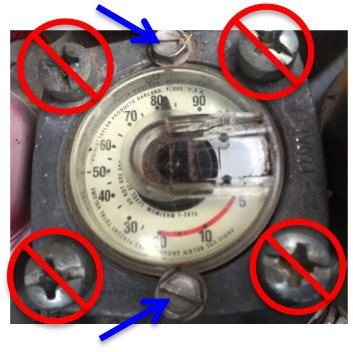

Note: Removing the dial can present a safety hazard. To remove the dial, we recommend consulting with your gas supplier. They will be able to either replace the dial for you and/or confirm if you are able to do this yourself based on local codes and your contract with them. They can do this without de-pressurizing the tank. The gauge, which is inside the tank, does not need to be replaced. DO NOT loosen the 4 large bolts at the corners of the gauge head

1. Remove the dial from your tank, by taking out only the 2 small screws.

2. Slide the sensor on the monitor (the little black piece at the end of the cable that looks like a boot) into the dial.
3. Attach the dial (with a sensor attached) to the tank with the 2 small screws. Make sure it's in the same orientation as it was previously.

How do I know if my dial is R3D remote ready?

See this article for examples of compatible R3D dials: Fuel Monitor FAQ
