Air-Cooled Home Standby Enclosure Features

This article provides an overview of air-cooled standby generator enclosure features.

Environment

This article applies to:

  • For Next Generation Series 10–28 kW air-cooled standby generators, see here.
  • For Guardian Series 10–26 kW air-cooled standby generators (2017 to present), see here.
Note: These features are not applicable to the 7.5 kW PowerPact.


Next Generation Series (10–28 kW)

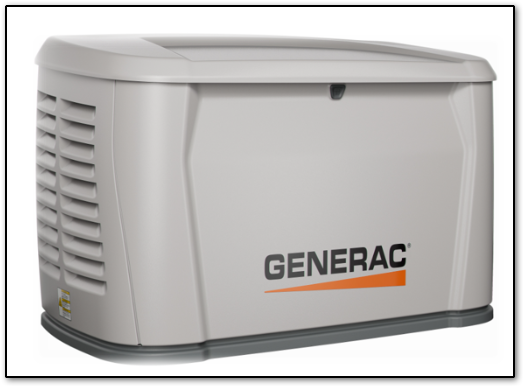

Next Generation Series air-cooled generator enclosure

  • Enclosure: Corrosion-resistant aluminum; sound-attenuated, weather-protective, and corrosion-resistant with a textured epoxy Metro Gray finish.
  • Sound, Roof & Airflow: Sloped roof and rear air intake minimize snow and ice intrusion; wind-rated up to 150 mph (241 km/h). Enclosed muffler for quieter operation.
  • Service Access: Gas strut lid opens fully to 90° for easy service access with a hinged, key-locking roof panel and lift-out front panel for maintenance.
  • Base / Mounting: Integrated composite base with four internal concrete mounting holes elevates and secures the unit; concealed lifting eyes and rear base plugs included. Can be installed on soil, 5 in. compacted pea gravel, or a concrete slab/GenPad, as permitted by local code.
  • Electrical & Installation: Simplified connection panel allows easier wiring and installation.
  • Battery Compatibility: AGM battery only, optimized for reliability.
  • Connectivity: Standard cellular module supports Mobile Link® remote monitoring app.
  • Safety: External emergency shutdown switch located on the exterior for quick access.
  • Status Indicators: LED indicators display system and maintenance status at a glance.
  • Dimensions: 46.4 × 26.3 × 30.7 in. (117.9 × 66.8 × 77.9 cm).
  • Accessories: Fascia kit not required.


Guardian Series (10–26 kW)

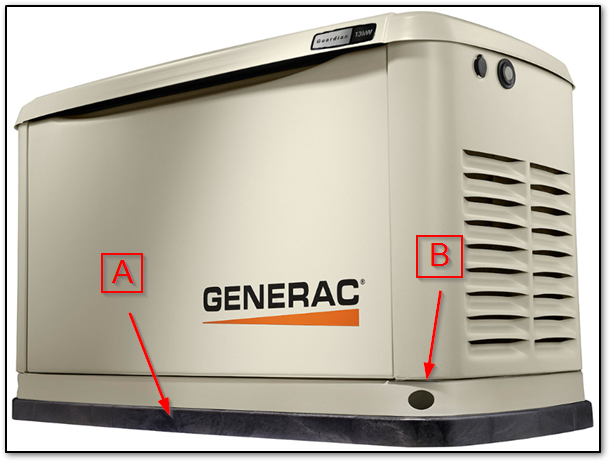

Guardian Series air-cooled generator enclosure

  • Enclosure: Corrosion-resistant aluminum; sound-attenuated, weather-protective, and corrosion-resistant with a textured epoxy finish.
  • Sound, Roof & Airflow: Wind-rated up to 150 mph (241 km/h). Enclosed muffler for quieter operation.
  • Service Access: Dual side-locking gas strut lid with lift-out front panel for maintenance.
  • Base / Mounting: Integrated composite base (A) with three internal concrete mounting holes (B) elevates and secures the unit. Can be installed on soil, 5 in. compacted pea gravel, or a concrete slab/GenPad, as permitted by local code.
  • Battery Compatibility:
  • Connectivity: Integrated Wi-Fi® module supports Mobile Link® remote monitoring app.
  • Safety: External auxiliary shutdown switch located on the exterior for quick access.
  • Status Indicators: LED indicators display system and maintenance status at a glance.
  • Dimensions: 48 × 25 × 29 in.
  • Accessories: Fascia kit covers base openings (lifting eyes) and deters rodents; standard on 26 kW model and available as an accessory for other sizes.
