Adding oil to a Generac portable generator

This article provides general instructions for adding engine oil to a Generac portable generator and checking the oil level. Oil-fill procedures and capacities can vary by model, so always follow the owner’s manual for model-specific requirements.

Environment

These instructions apply to a majority of portable generator models. Procedures can vary by model, including the location of the oil fill and the correct method for reading the dipstick. For instructions tailored to your specific model, consult the owner’s manual. See Where can I download a user manual for my Generac portable generator? for help finding the correct manual.

Video guide

Procedure

1. Place the generator on a level surface. This helps ensure the oil level is measured correctly.
Note: On some models, insert the dipstick without threading it into place to check the oil level. On other models, fully screw in the dipstick, then remove it to check the oil level. Refer to the owner’s manual for instructions specific to your generator model. See Where can I download a user manual for my Generac portable generator? for more information.
2. Remove the oil fill cap and add oil gradually.
3. Use the dipstick to confirm the oil level is at the FULL mark. Do not overfill.

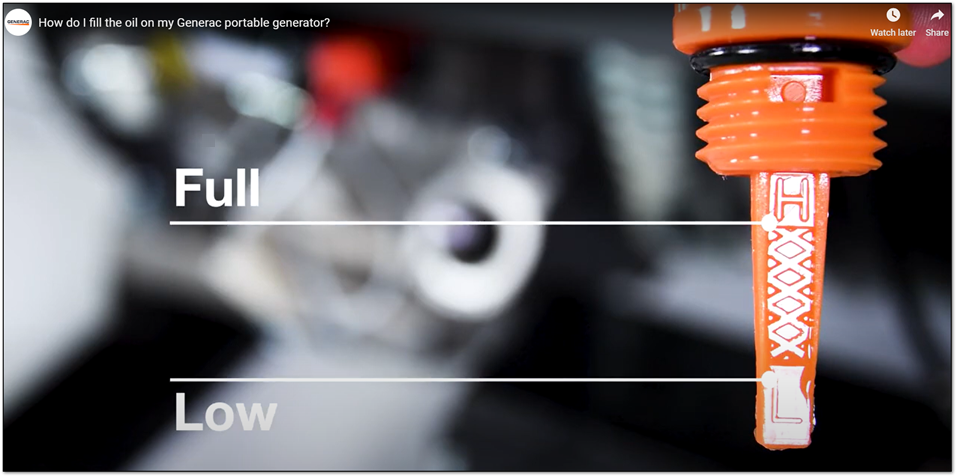

Portable generator oil dipstick showing the full oil level mark

Oil quantity

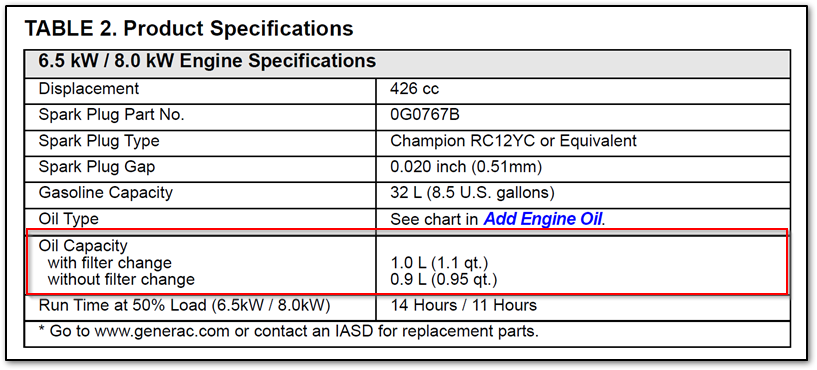

The example image below shows the oil capacity listed in the Generac XC series owner’s manual. This image is provided as an example. Always reference the owner’s manual for the specific generator model to determine its oil capacity.

Example oil capacity specifications from a Generac XC series owner's manual
