OVERLOAD REMOVE LOAD: Error Codes 2100-2103
Environment
This article applies to error codes 2100-2103, OVERLOAD REMOVE LOAD, for Generac air-cooled home standby generators.
Note: The term "error code" is used interchangeably with 'alarm code,' 'fault code,' 'fault alarm' and similar terminology. Error code applies to all such terminology.
Overview
- Error codes: 2100-2103
- LED Indicator: Red
- Mobile Link Message: The generator has experienced an overload alarm. Please contact a dealer.
- Fault: OVERLOAD REMOVE LOAD
- Issue: The generator is being overloaded by excessive electrical load demand.
- Potential Causes: Load demand exceeds the generator's rated power capacity.
General troubleshooting
Identify non-essential loads
- Review the loads connected to the generator.
- Identify loads that are not critical during an outage.
Remove non-essential loads.
- Disconnect or deactivate non-essential loads.
- This can be done by unplugging non-essential loads or turning off connected breakers in the main electrical panel.
- Ensure that the remaining loads, when running simultaneously, are below the generator's rated power capacity.
Verify load management device functionality (If applicable)
If using a Generac Load Manager, verify it is functioning correctly, and lockouts are properly configured:
Remove connected loads and clear the alarm
After troubleshooting is complete, safely remove the connected loads from the generator, then attempt to clear the alarm and manually restart the unit.

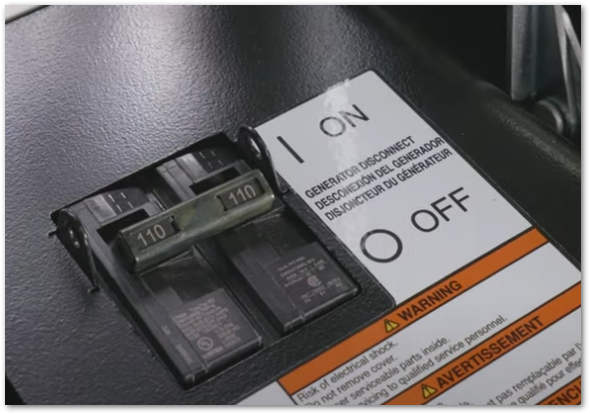

- Turn the generator's main line circuit breaker to OFF. Never attempt to start the generator while under load: How do I know if my generator is currently under load?
- Turn the utility main line circuit breaker to OFF. The location and appearance of the utility service disconnect will depend on the home's electrical system.
- Clear the alarm:
-
- For Guardian series generators, press OFF then press ENTER.
- For Next Generation series generators, hold the OFF button for at least three seconds.
Note: If the same alarm reappears after putting the generator in AUTO mode, remove additional loads or contact a Generac authorized service dealer.
Restart the unit and return loads to the generator
If the generator successfully starts after clearing the alarm code and placing the unit in AUTO mode:
- Allow the engine to warm up for one to two minutes.
- Then, turn the generator's main line circuit breaker to ON. The generator is now powering the home's connected loads.
- Finally, turn the utility main line circuit breaker to ON so that the generator will recognize when utility power is restored.
Next Steps
- Closely monitor the generator's performance.
- Continue to only power essential appliances during the outage (Sump pump, refrigerator) to avoid overloading the generator again.
- If the generator shuts down again with the same error code, it is still being overloaded. Repeat the process described above.
When should you contact a Generac Independent Authorized Service Dealer (IASD)?
- If issues persist after performing the checks and attempting to restart, contact a Generac IASD for diagnosis.
Preventative measures
To avoid future overload alarms:
- Regularly assess load capacity and usage.
- If utilizing any load management devices, verify proper functionality and lockout configurations.
- Perform routine maintenance and inspections according to the maintenance schedule.
